VSDISPLAY 15.6" 15.6 Inch 1920X1080 LCD Screen G156HTN02.1 with LCD Controller Board VS-TY2660H-V661
Product details
| Management number | 218485967 | Release Date | 2026/05/03 | List Price | $67.14 | Model Number | 218485967 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

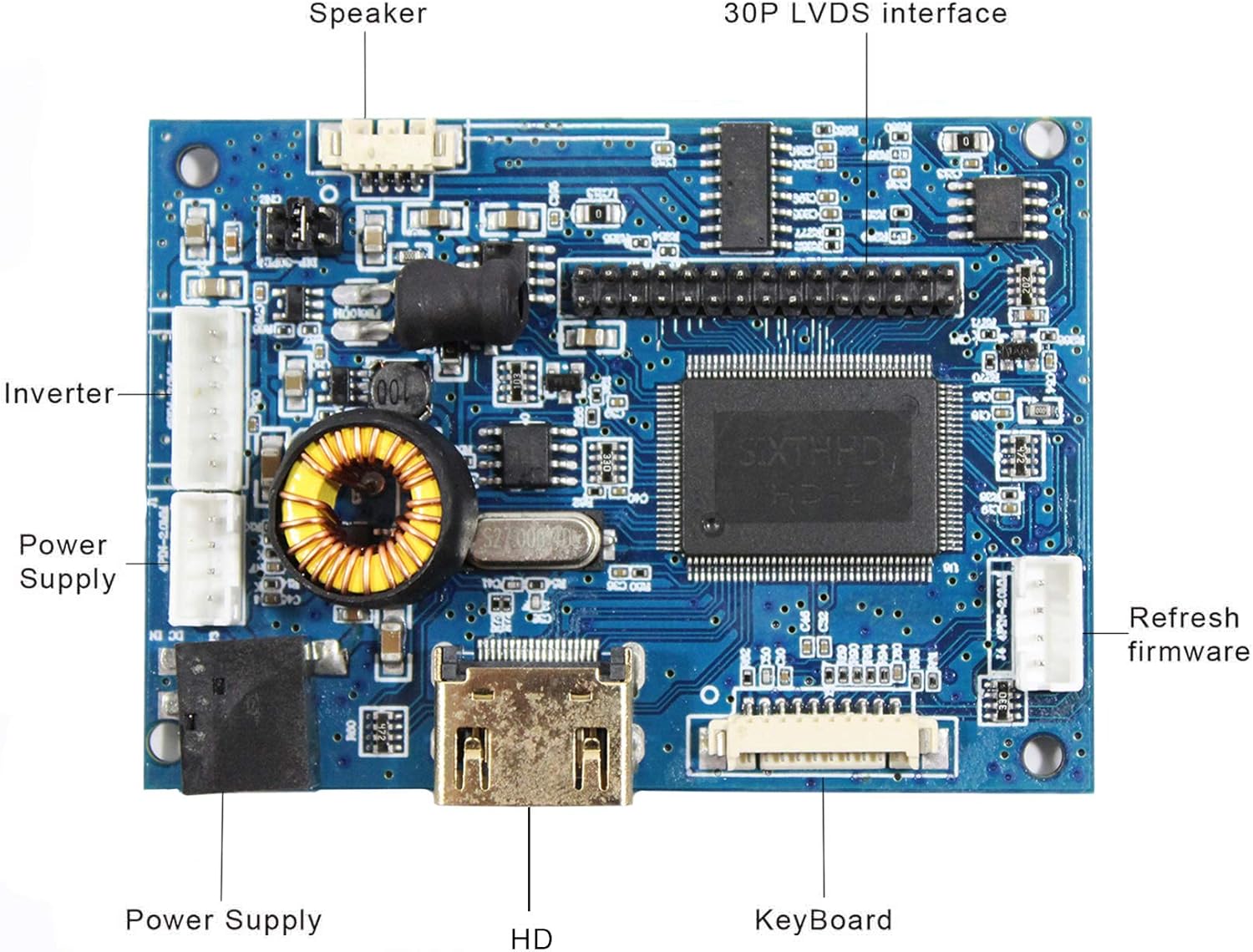

LCD Controller Board: LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 5A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: Audio Input: Audio Output: Speaker (4Pin PH1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 15.6" G156HTN02.1 1920X1080 LCD Screen:Display Mode TN, Normally White, TransmissiveResolution 1920(RGB)×1080, , 141PPI Outline Size 363.8(W)×215.9(H) ×12.5(D) mmDisplay Area 344.16(W)×193.59(H) mm Brightness 1000 cd/m² (Typ.)Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 70/70/60/60 (Typ.)(CR≥10)Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector Input Voltage 3.3V (Typ.) Packing list:1× Audio LCD Controller Board VS-TY2660H-V6611×15.6" G156HTN02.1 1920X1080 LCD Screen1× LVDS Cable1× Backlight Cable1× Keyboard With Cable
- 15.6" G156HTN02.1 1920X1080 LCD Screen: Outline Size 363.8(W)×215.9(H) ×12.5(D) mm Display Area 344.16(W)×193.59(H) mm Brightness 1000 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (TM)
- LCD Board Work for LVDS Interface LCD Screen
- Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
- Recommend Power Adapter Spec. Input Power Adapter: 12Vdc More than 5A. Help to Notice There is No Power Adapter in The Packing List.

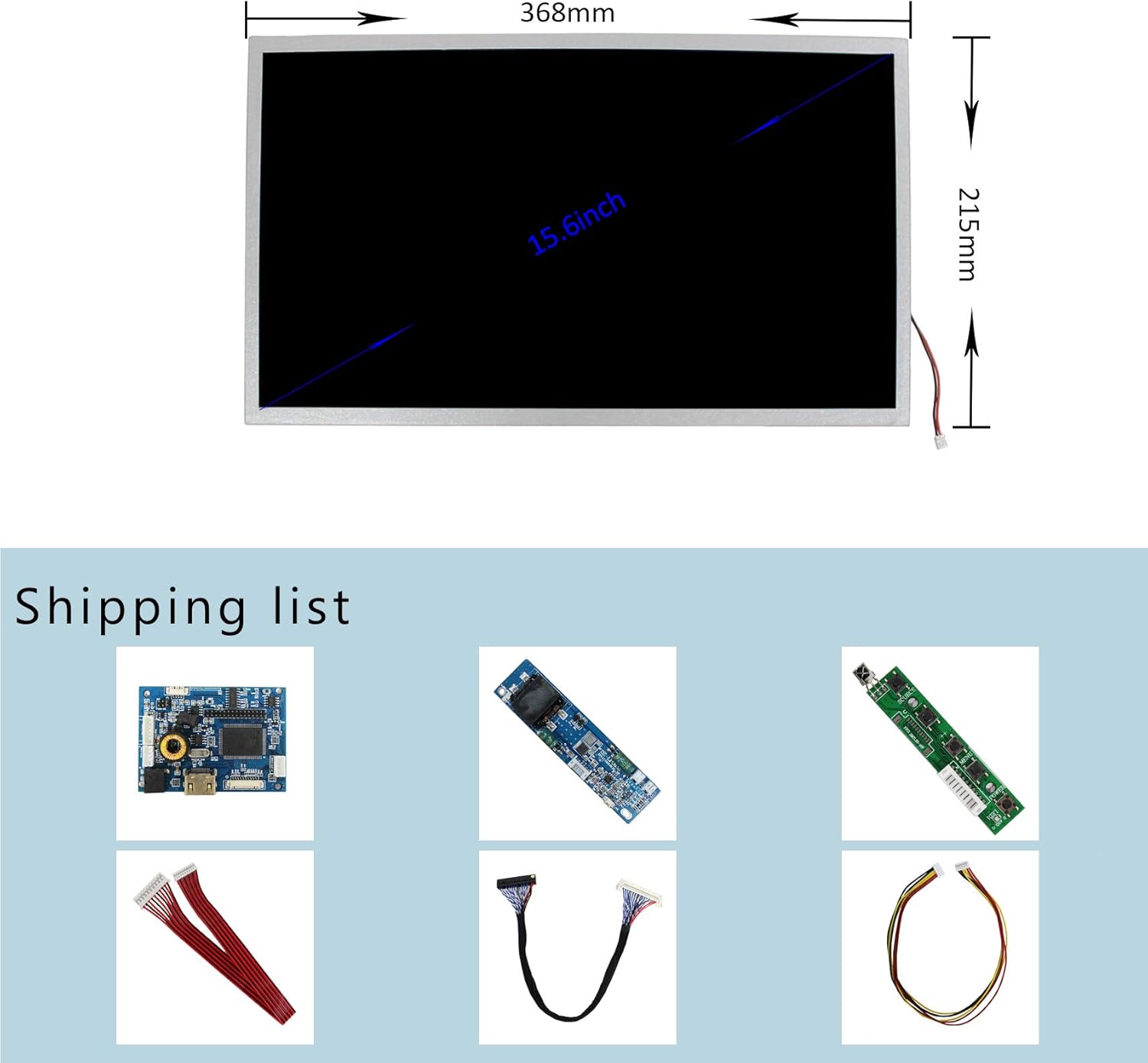

- Packing list: 1× Audio LCD Controller Board VS-TY2660H-V661 1×15.6" G156HTN02.1 1920X1080 LCD Screen 1× LVDS Cable 1× Backlight Cable 1× Keyboard With Cable
| UPC | 601285648712 |
|---|---|
| Brand | VSDISPLAY |
| Color | LCD Controller Board |
| Resolution | FHD 1080p |
| Screen Size | 15.6 Inches |
| Display Type | LCD |
| Manufacturer | VSDISPLAY |
| Screen Finish | Glossy |
| Native Resolution | 1920x1080 |
| Display Technology | LCD |
| Hardware Connectivity | Unknown |
