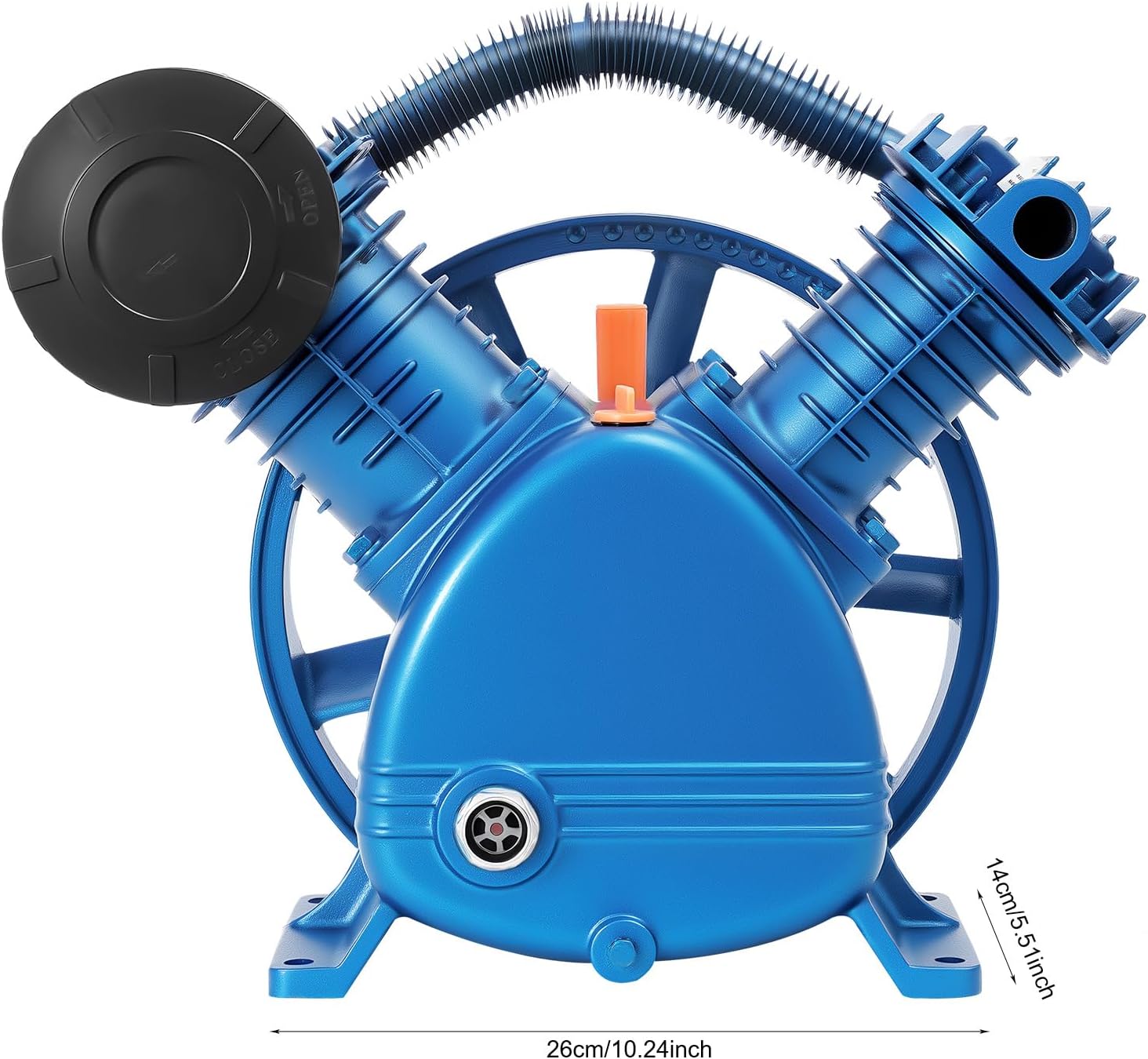

175PSI 5.5HP 2-Cylinder Air Compressor Pump Head, Universal Low-Energy Air Compressor Head Motor 8~11CFM V Type Double-Cylinder Air Compressor Pump Head Double Stage Faster Inflation And Low Noise
Product details
| Management number | 218674563 | Release Date | 2026/05/03 | List Price | $85.04 | Model Number | 218674563 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

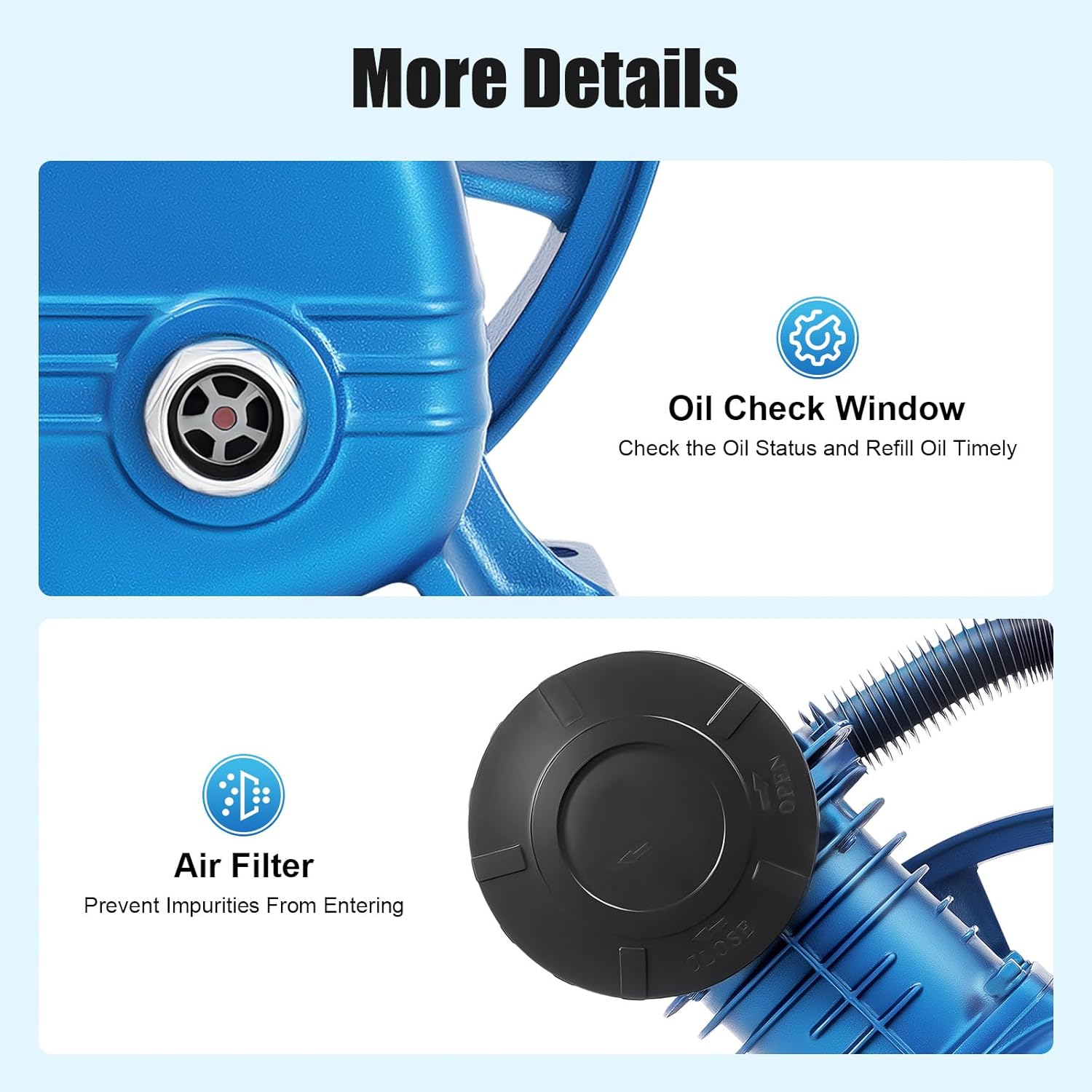

DescriptionSpecifications: Air delivery: 8~11CFMRated pressure: 175 PSI (1.16MPa)Driving power: 4KW (5.5HP) Pump speed: 800RPMCylinder diameter: 3.54" (90mm)Distance of screw hole: 26cm*14cm (10.2"*5.5")Rated exhaust volume: 0.6L/MinNote: If the motor speed is 2880rpm, the diameter of the motor wheel is 10 cm. If the motor speed is 1440rpm, the motor wheel is 20 cmItem included:1* Air Compressor Pump headInstallation notes:1、 When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration.2、 Tighten the screws (including the base and pulley screws).3、 After the screws are installed, the belt shall be tightened. If the belt is loose, please move the motor. After the screws are tightened, reinstall the belt.4、 The new machine must be filled with engine oil before starting, and the engine oil shall be added to the center of the red point of the oil mirror.5、 The rotation direction of the pump head is clockwise. If it reverses, please adjust it in time.6、 Change the oil for the first half month, the second one and a half months, and the next two to three months.7、 Replace the air filter regularly. Under normal conditions, it must be replaced in two to three months, and in case of poor environment, it must be replaced in one month.8、 The operation of the machine will produce high temperature, be careful not to burn!
- 【Premium Quality:】The air compressor pump head is made of high quality cast iron, with complete accessories, efficient installation and easy maintenance. High efficiency, high precision, universal.
- 【Good Performance:】Special valve steel is used for hair piece, which has good strength and toughness at high temperature. Strong cooling blade, good cooling performance. Faster inflation and low noise.
- 【Main Parameters:】Air delivery: 8~11CFM; Rated pressure: 175 PSI (1.16MPa); Driving power: 4KW (5.5HP) ; Pump speed: 800RPM; Cylinder diameter: 3.54" (90mm); Distance of screw hole: 26cm*14cm (10.2"*5.5"); Rated exhaust volume: 0.6L/Min.
- 【Note: 】If the motor speed is 2880rpm, the diameter of the motor wheel is 10 cm. If the motor speed is 1440rpm, the motor wheel is 20 cm.
- 【Air Compressor Pump Head:】The Air Compressor Pump Head has strict balance support and correction to ensure smooth operation of the host.
| Color | Blue |
|---|---|
| Style | Reciprocating, Portable, Pancake Style, Electric |
| Brand Name | InnaMall |
| Model Name | Air Compressor Pump Head |
| Manufacturer | KONGIEA |
| Model Number | HG-WMTZXL-2615-QXF |
| Power Source | Corded Electric |
| Material Type | Cast Iron |
| Maximum Power | 5.5 Horsepower |
| Maximum Pressure | 175 |
| Motor Horsepower | 5.5 horsepower |
| Air Flow Capacity | 0.6 Liters Per Minute |
| Maximum Horsepower | 5.5 Horsepower |
| Additional Features | Double Cable |
| Included Components | 1* Air Compressor Pump head |
| Manufacturer Part Number | HG-WMTZXL-2615-QXF |
| Recommended Uses For Product | Air Compressor Pump Replacement |
